Uncoiler/Recoiler — Coils 5 to 60 Ton

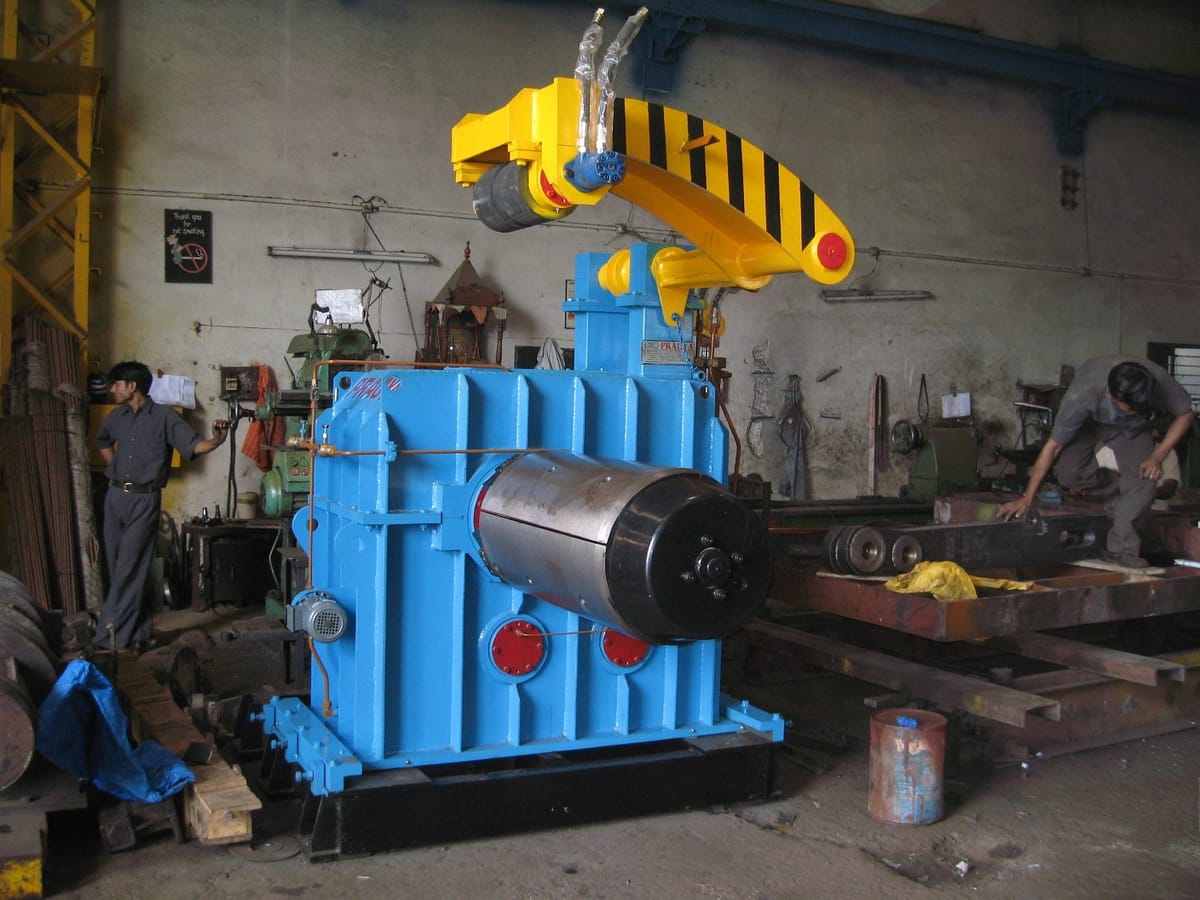

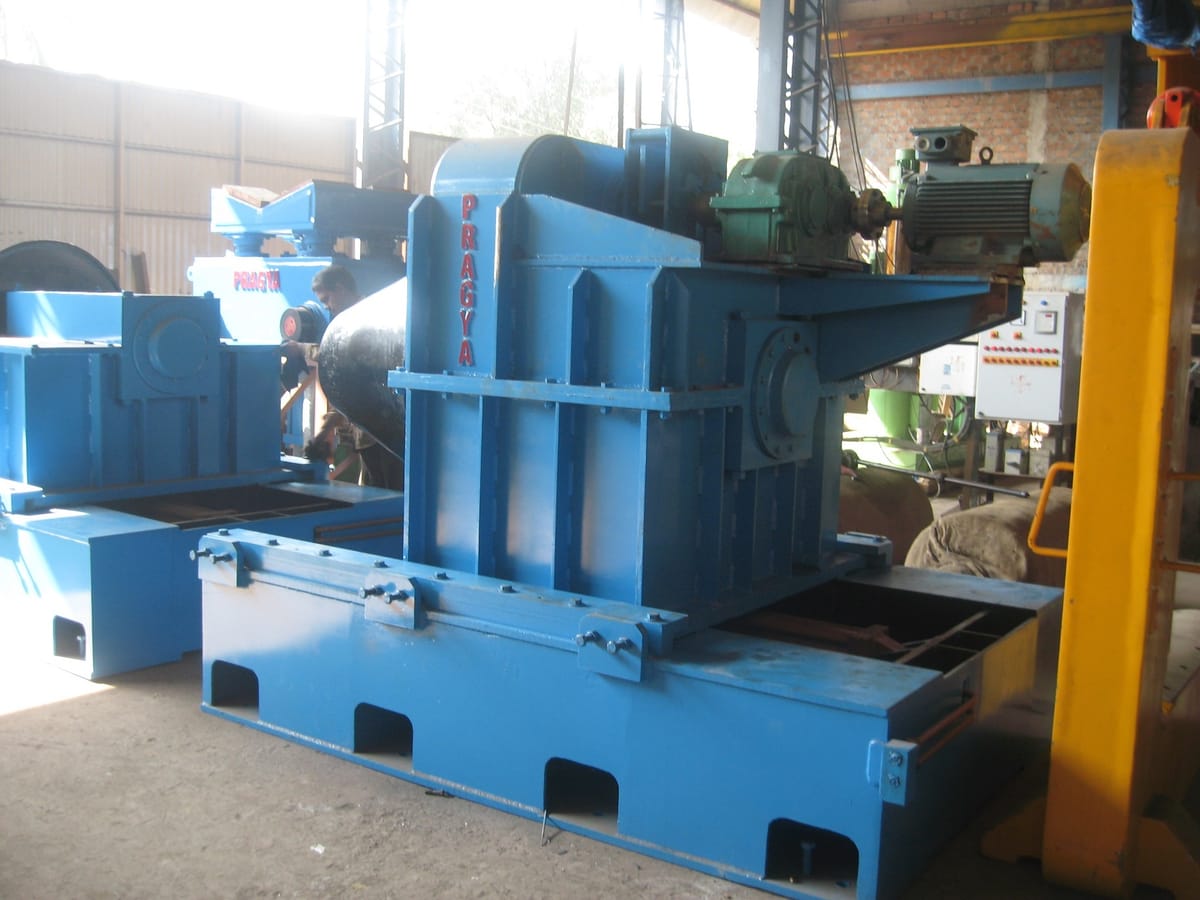

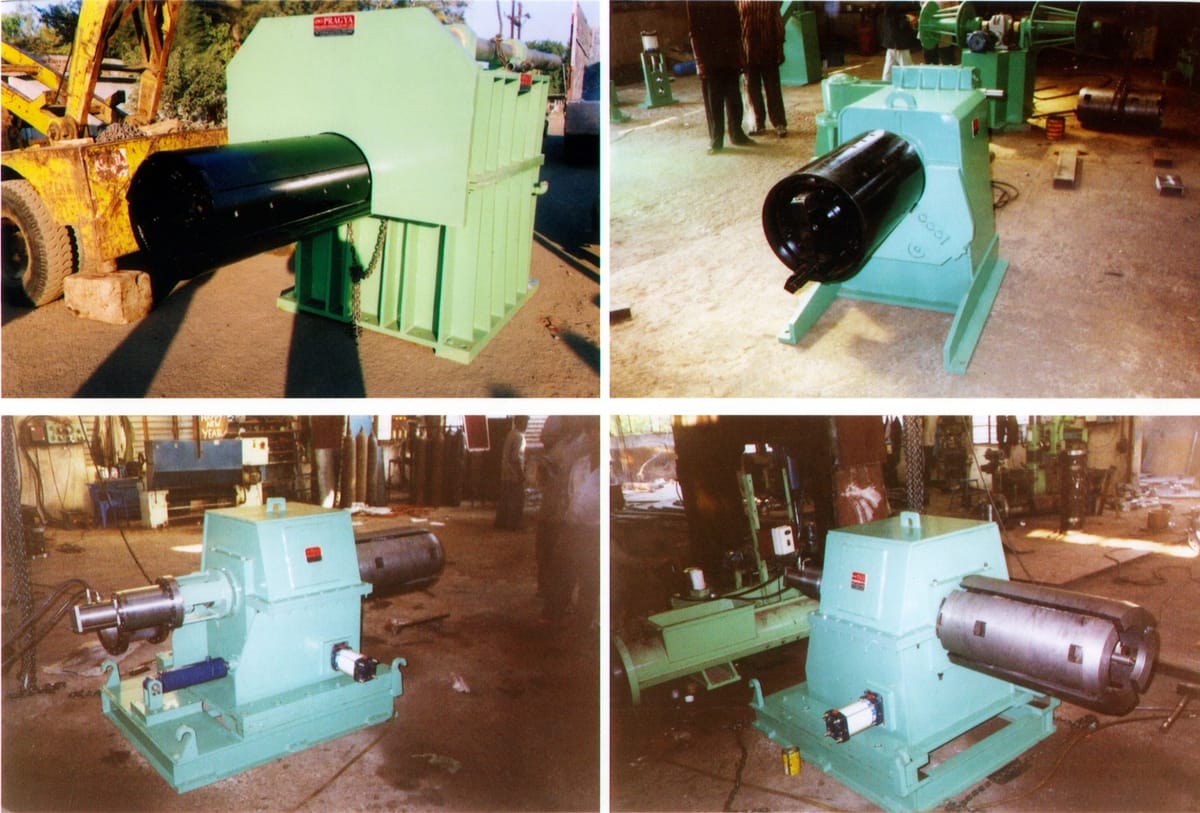

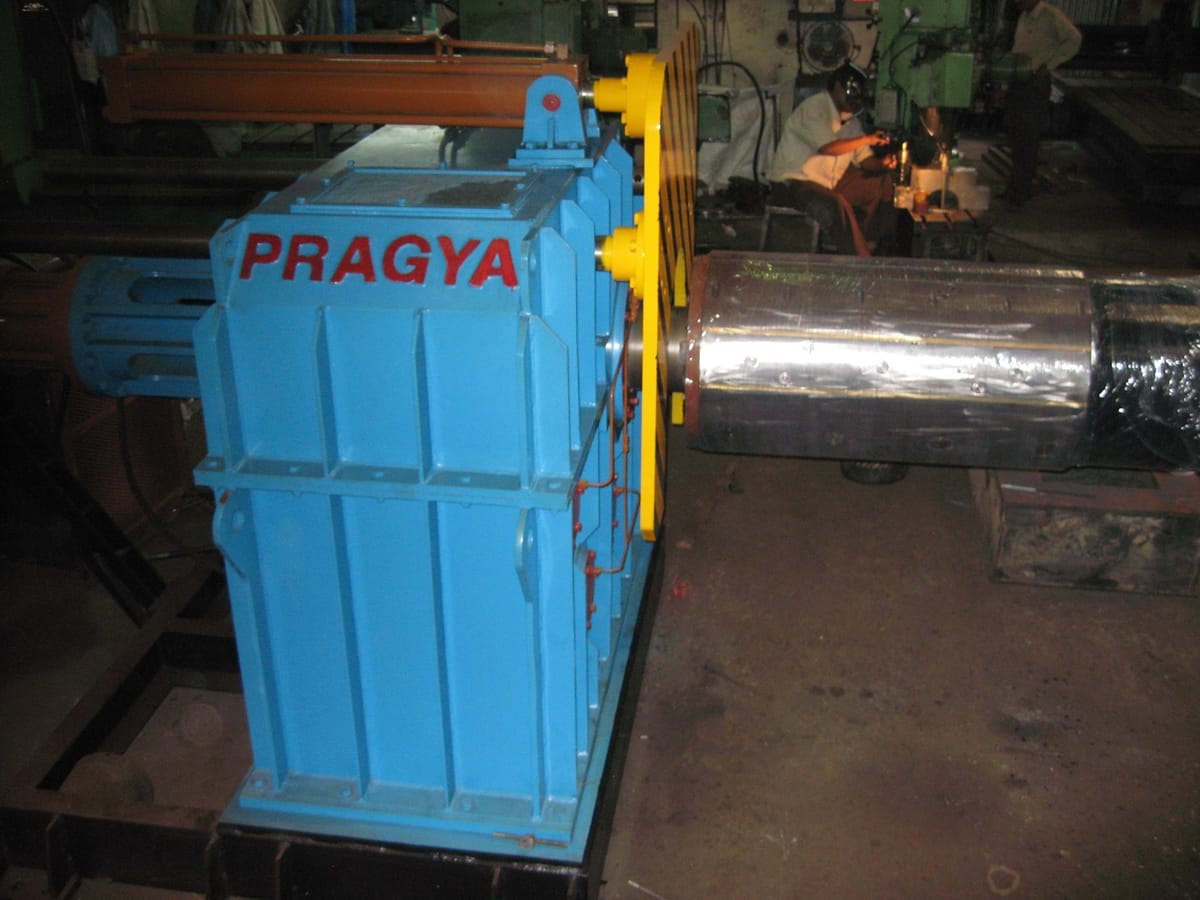

Uncoilers and recoilers enable unwinding and rewinding of metal coils in processing lines. With capacities from 5-60 ton and widths up to 1829 mm, they feature hydraulic mandrel expansion, tension control, and variable-speed drives for synchronized, smooth material flow.
Product Variants

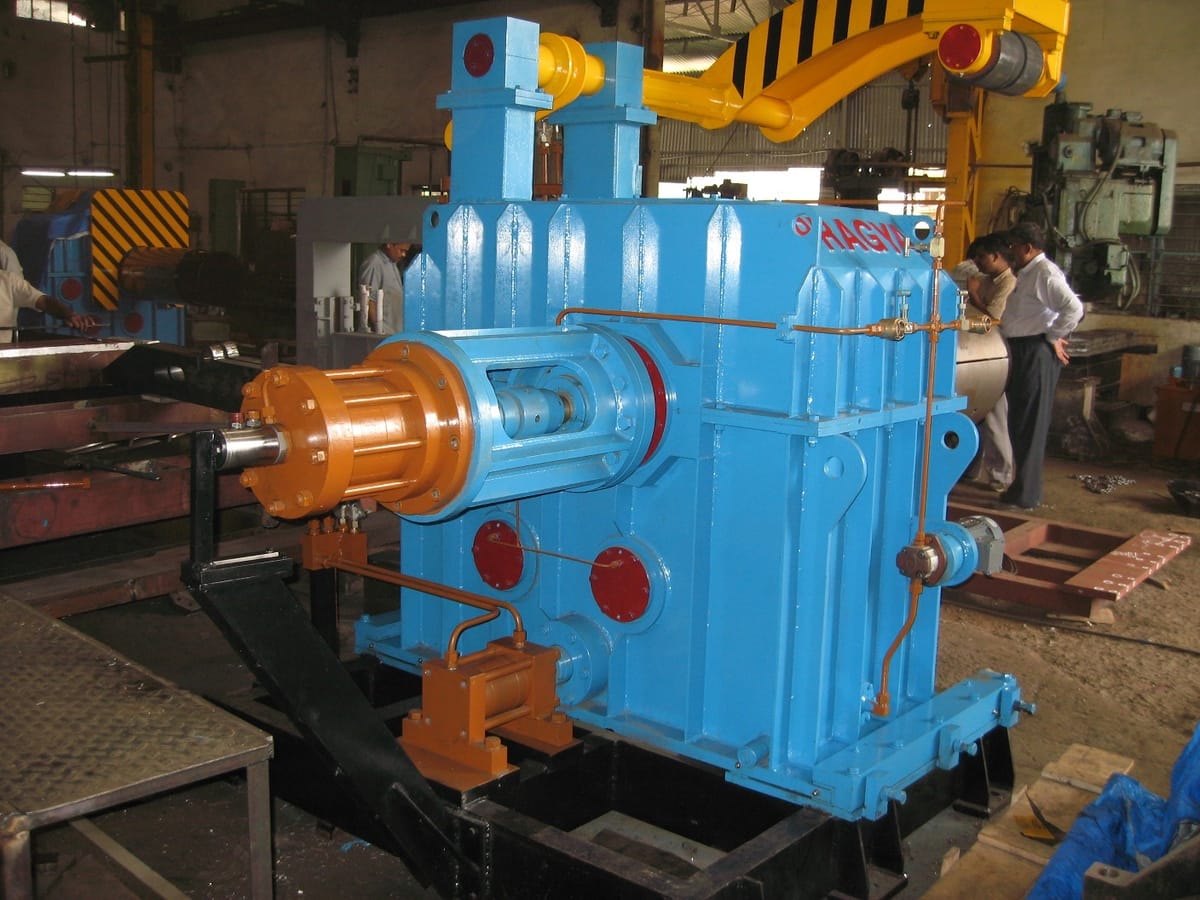

- Uncoiler: Hydraulic mandrel expansion for feeding

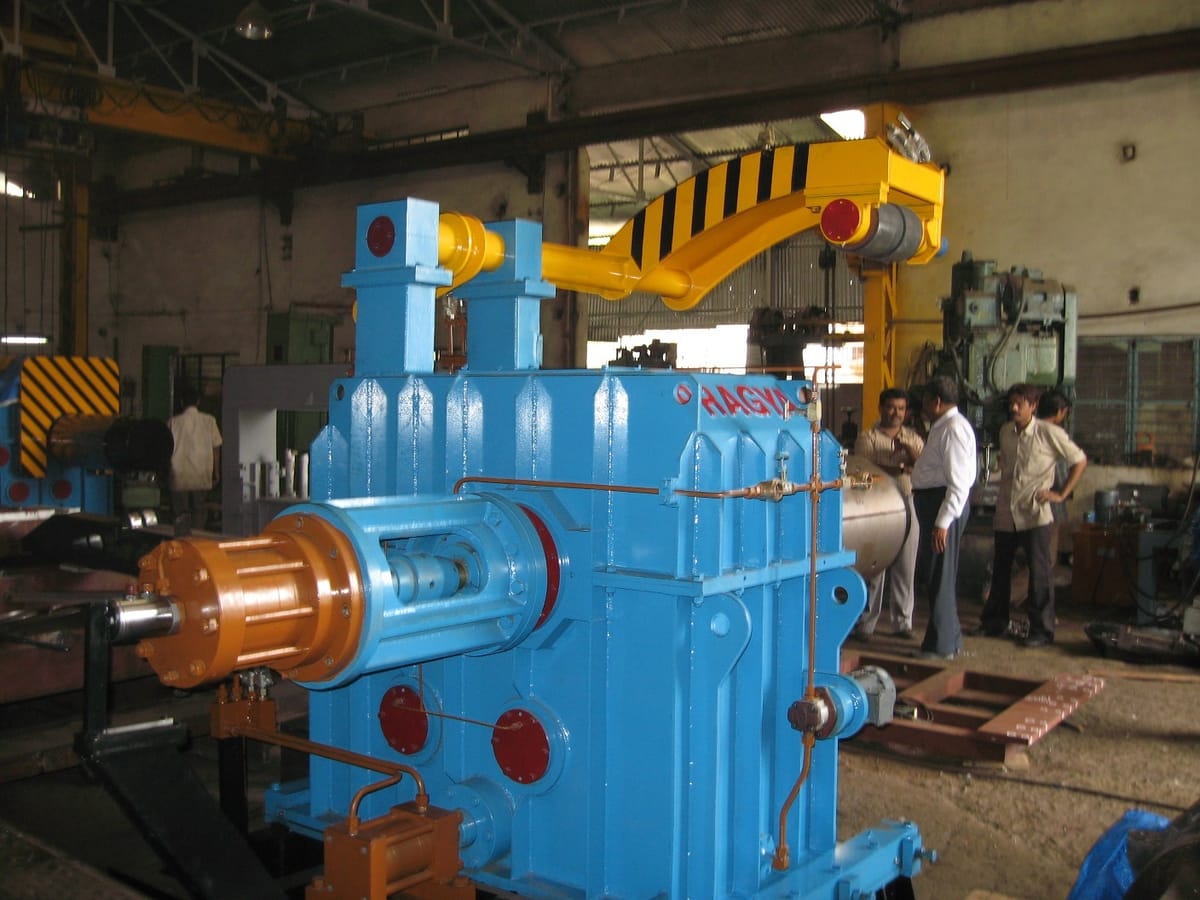

- Recoiler: Tension-controlled rewinding
- Heavy-Duty: Up to 60 ton capacity
Specifications
Key Features
- Hydraulic mandrel expansion
- Tension control for smooth flow
- Variable-speed synchronized operation
- Pressing arms prevent loosening
Applications
- Coil slitting lines
- Blanking and cutting
- Sheet metal processing
- Coil production lines
Frequently Asked Questions
What coil range can your uncoilers and recoilers handle?
Coils from 5 to 60 ton, widths of 152-1829 mm, outer diameters up to 1400 mm, and strip thickness of 0.4-3.4 mm.
What drive options are available?
Hydraulic, electric, and VFD-controlled drives. VFD control gives the smoothest tension regulation for thin or surface-critical strip.
Is the uncoiler/recoiler customised to my requirement?
Yes. Every machine we build is custom-engineered — capacity, dimensions, and configuration are matched to your line. Send your requirement via the enquiry form or call +91 91091 02280 for a firm quote.
*This is only an approximate starting price — a rough, loose estimate. Every machine is custom-engineered to your requirements, so the final price depends on capacity, specifications, and configuration — reach out for a firm quote.
