Fin Tubes Explained: Applications in Heat Exchangers and Boilers

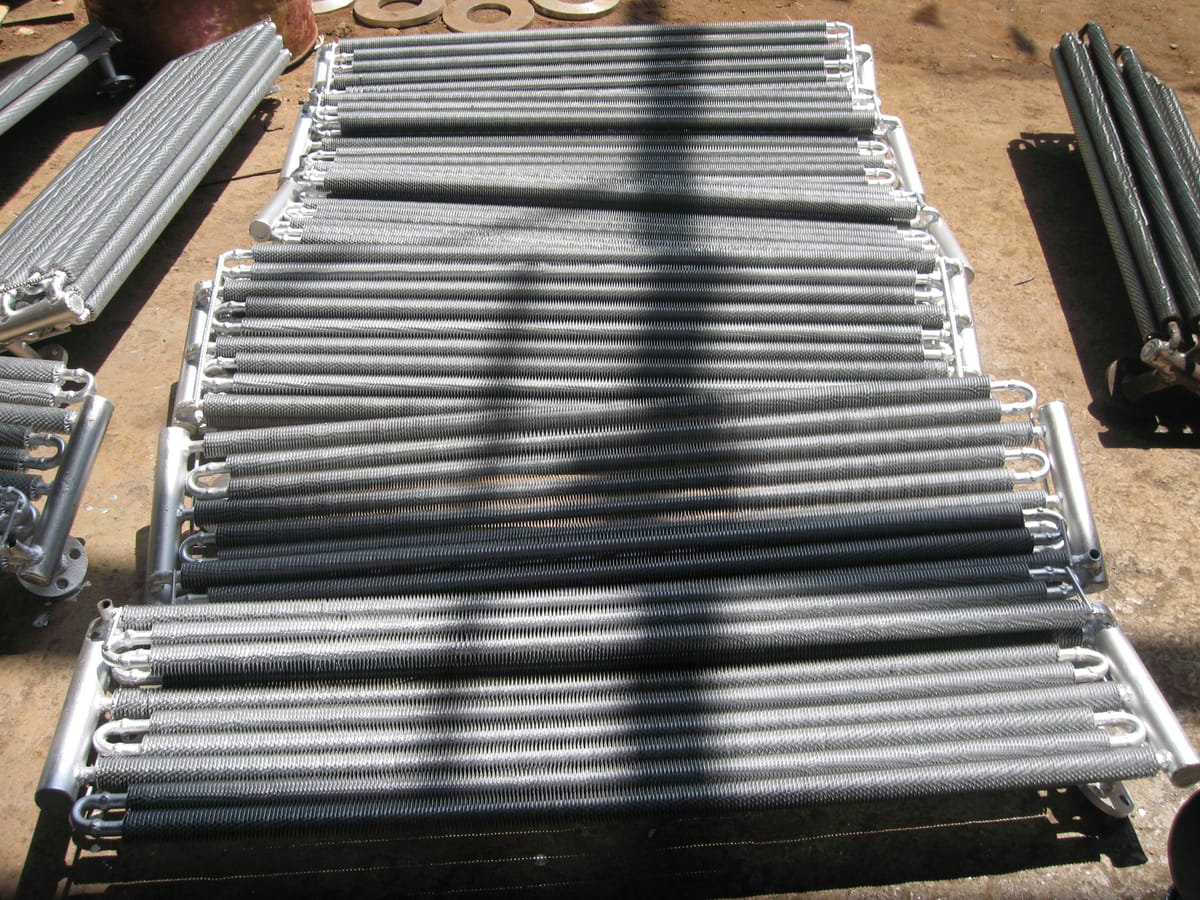

A fin tube is a heat exchanger tube with a spirally wound fin mechanically crimped onto its base tube, which increases surface area and creates airside turbulence to transfer heat more effectively than a bare tube of the same size.

How they're made

A fin strip is wound in a continuous spiral around the base tube under tension, and mechanical crimping forms interlocking ridges between the fin and the tube for a durable bond — no welding required, though tack welding at the ends is an option for extra security. This spirally crimped construction gives strong thermal contact between fin and tube, an improved heat transfer coefficient versus a bare tube, and a lower cost than welded fin tube construction, while still holding up under heating and cooling applications.

Why the fins matter

Bare tubes have limited surface area for heat exchange with the surrounding air or gas. Adding fins multiplies that surface area substantially, and the fin geometry also disturbs airflow across the tube, creating turbulence that further improves heat transfer compared to smooth airflow over a bare tube. Together, these two effects are what let a finned tube outperform a bare tube of the same base diameter in the same space.

Specifications

• Tube OD: 15-220 mm
• Fin height: 6.35-38 mm
• Fin density: 10-50 FPI (fins per inch)
• Tube material: carbon steel, stainless, or alloy
• Standards: ASTM A106, A179, ASME

Fins themselves are available in aluminum, copper, or steel, so the fin material and the base tube material can be matched independently to the application's thermal and corrosion requirements.

Applications

• Power generation condensers
• Petrochemical cooling
• HVAC systems
• Air-cooled heat exchangers

Choosing fin tube specifications

Tube OD and fin height need to be sized against the heat exchanger or boiler design they're going into — a wider fin height increases surface area but also increases the space the tube assembly occupies, so the two trade off against each other. Fin density (10-50 FPI) affects both heat transfer and airflow resistance: denser fins add surface area but can restrict airflow more, which matters in air-cooled applications where fans have to push air across the tube bank. Material selection follows the operating environment — carbon steel base tubes with aluminum fins are a common, cost-effective combination for many air-cooled applications, while stainless or copper alloy tubes suit more corrosive or higher-purity process conditions. For plants producing these tubes in volume rather than sourcing them, a fin tube machine is the equipment that makes in-house production practical.
